3. Write your second Graph

Do the previous tutorial first!

This tutorial assumes you completed the previous tutorial, which gives an overview of Graphs, Nodes, and Transitions.

In this tutorial, we will write a Graph that describes a "real" behavioral task, with instructions and classification trials.

Along the way, you'll get exposed to more features of NodeKit. By the end, you'll have written a Graph that looks like this:

Nested Graphs

In the picture above, one can notice something new: a Graph made up of Graphs. This enables one to write a Graph hierarchically, using smaller organizational units of one's choosing (such as "trials" and "blocks").

In this tutorial, we will be using this NodeKit feature.

Step 1: Create the instructions Graph

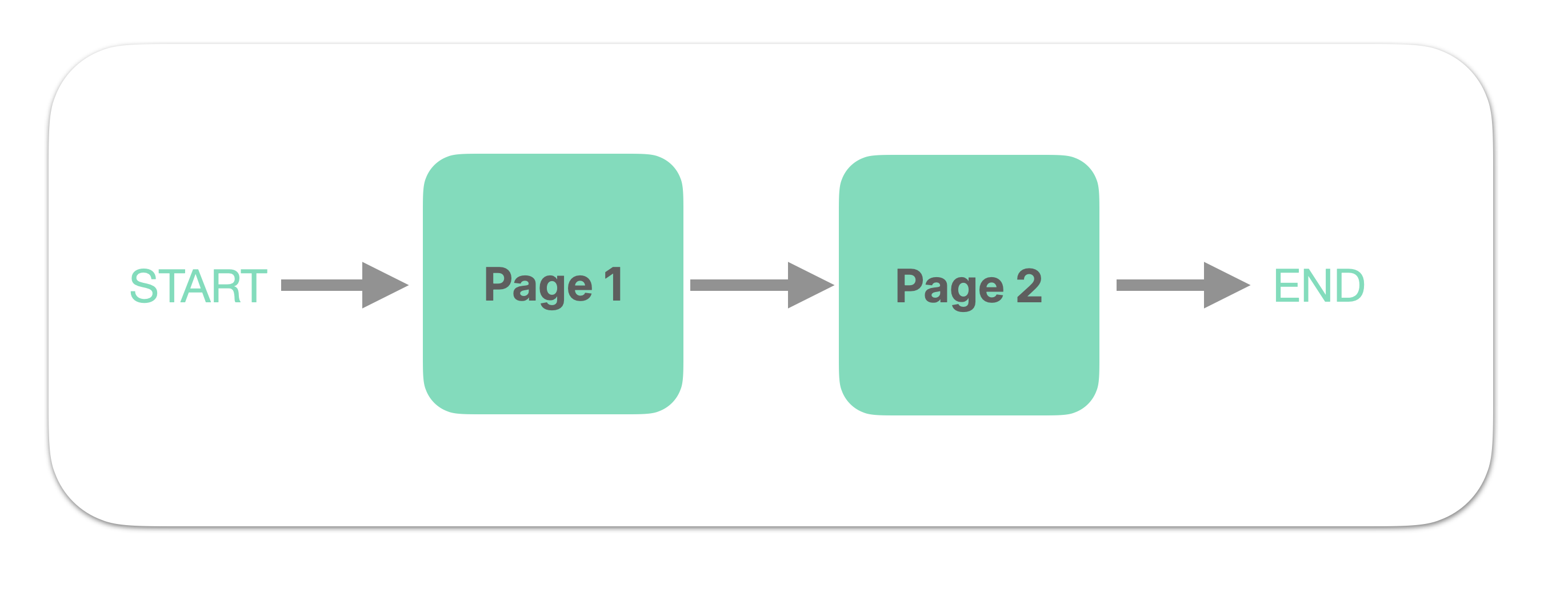

We'll begin by writing an "instructions Graph" which consists of two pages of instructions. At the end of this step, we'll have a Graph that looks like this:

As in the previous tutorial, we'll start by defining a set of Nodes, then wiring them together into the Graph.

Define instruction Nodes

First, add the following code to write the first page of instructions:

import nodekit as nk

instructions_page_1 = nk.Node(
    card=nk.cards.TextCard(
        text=("# Welcome!"
              "\n\n"
              "This is the first page of the instructions. "
              "Press the right arrow key to continue."),
        justification_horizontal='left',
    ),
    sensor=nk.sensors.KeySensor(
        keys=['ArrowRight']
    ),
    board_color='#ffffffff', # white background
)

Notice we are setting the justification_horizontal field in the TextCard to left. In general, the TextCard has many default parameters which may be overridden to customize the appearance of the TextCard.

TextCards accept Markdown syntax

You might have noticed we used Markdown formatting in the text field of the TextCard. Here, we wrote # Welcome! to define a header element.

In NodeKit, TextCards accept Markdown syntax. This allows one to easily bold and italicize text, create lists, and more.

Coloring the background of the Node

You might have also noticed we set the board_color parameter of the Node. By default, the background color in NodeKit is gray. Here, we've changed it to white.

NodeKit uses 8 digit hex encoding of colors, which enables one to specify (R, G, B, A).

Now let's write the second page of instructions, which will be another Node that looks quite similar to the first one.

import nodekit as nk

instructions_page_1 = nk.Node(
    card=nk.cards.TextCard(
        text=("# Welcome!"
              "\n\n"
              "This is the first page of the instructions. "
              "Press the right arrow key to continue."),
        justification_horizontal='left',
    ),
    sensor=nk.sensors.KeySensor(
        keys=['ArrowRight']
    ),
    board_color='#ffffffff', # white
)

instructions_page_2 = nk.Node(
    card=nk.cards.TextCard(
        text=("This is the **second** page. "
              "Press the right arrow key to continue."),
        font_size=20,
        justification_horizontal='left',
    ),
    sensor=nk.sensors.KeySensor(
        keys=['ArrowRight']
    ),
    board_color='#ffffffff', # white background
)

Wire Nodes together into the instruction Graph

Now it's time to "wire" these two Nodes together into a Graph. Add the following lines of code:

import nodekit as nk

instructions_page_1 = nk.Node(
    card=nk.cards.TextCard(
        text=("# Welcome!"
              "\n\n"
              "This is the first page of the instructions. "
              "Press the right arrow key to continue."),
        justification_horizontal='left',
    ),
    sensor=nk.sensors.KeySensor(
        keys=['ArrowRight']
    ),
    board_color='#ffffffff', # white background
)

instructions_page_2 = nk.Node(
    card=nk.cards.TextCard(
        text=("This is the **second** page. "
              "Press the right arrow key to continue."),
        font_size=20,
        justification_horizontal='left',
    ),
    sensor=nk.sensors.KeySensor(
        keys=['ArrowRight']
    ),
    board_color='#ffffffff', # white background
)

instructions_graph = nk.Graph(
    start='page1',
    nodes={
        'page1': instructions_page_1,
        'page2': instructions_page_2,
    },
    transitions={
        'page1': nk.transitions.Go(to='page2'),
        'page2': nk.transitions.End()
    }
)

As in the previous tutorial, we assigned an ID to each Node (page1 and page2). Naturally, we have the Graph start on page1. You might also recognize the End Transition, which declares the Graph will end after the agent takes an Action in page2.

But we have not seen this new Go Transition, which is attached to page1. The Go Transition here means: after the agent takes an Action in page1, go to page2.

We're now done with the instructions Graph. If you'd like, try calling nk.play on the instructions Graph to inspect how it looks.

Step 2: Create the AFC Graphs

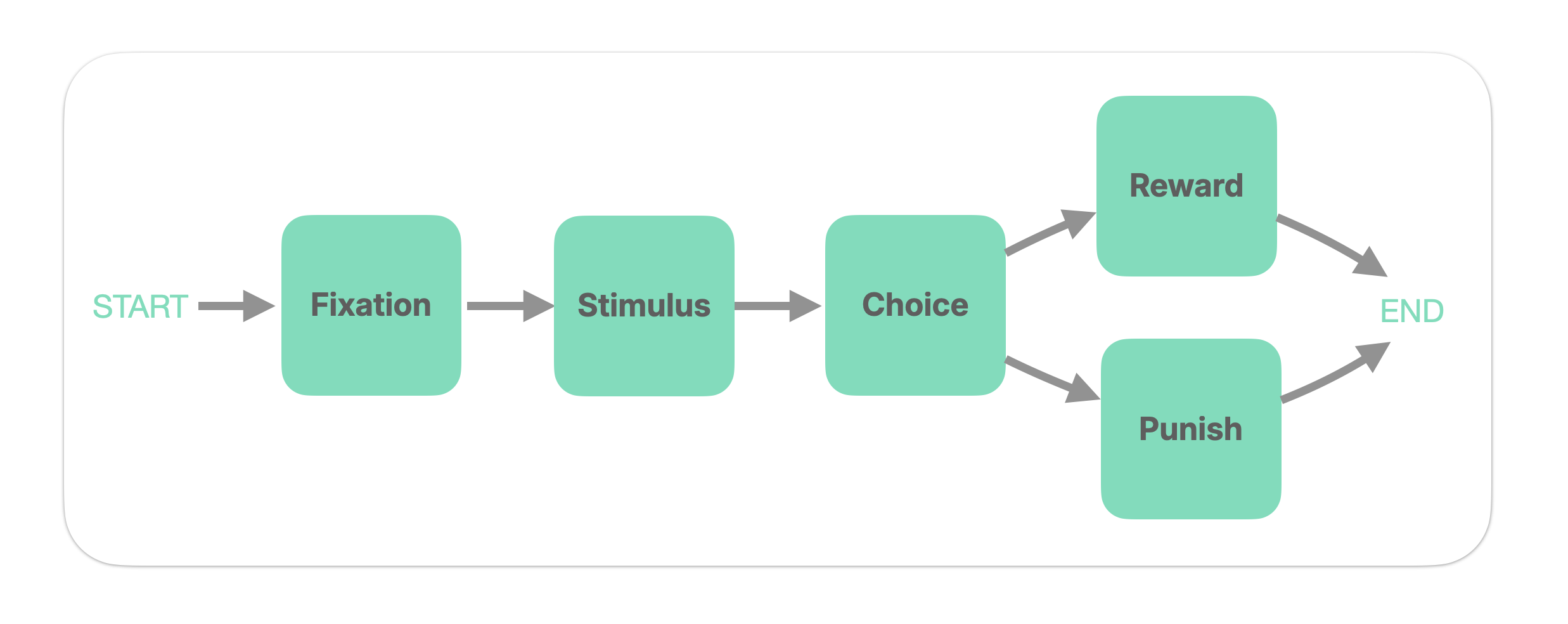

Let's now turn our attention to writing an alternative forced choice ("AFC") image classification trial. A single trial has a Graph which looks like this:

In plain words, this Graph proceeds through the following phases:

1. Fixation: Showing the agent a fixation point which they must click
2. Stimulus: Showing the agent a stimulus for a fixed duration of time
3. Choice: Showing the agent an array of choices, of which the agent must choose 1
4. Feedback: Delivering a "reward" OR "punish" screen, based on some notion of correctness

Define AFC Nodes

Begin by picking image files. They should be SVG, PNG, or JPEG; NodeKit does not support other image formats.

We'll assume you have four images on disk: a fixation image (fixation.png), a stimulus image (stimulus.png), and two choice images (choice-correct.png and choice-incorrect.png).

In the choice Node, we will put the correct choice on the left side of the screen.

Start by defining a few sizes and durations:

import nodekit as nk

fixation_size = 60
stimulus_size = 350
choice_size = 250
stimulus_duration_msec = 500
feedback_duration_msec = 600

Now define the Nodes for fixation, stimulus, choice, and feedback:

import nodekit as nk

fixation_size = 60
stimulus_size = 350
choice_size = 250
stimulus_duration_msec = 500
feedback_duration_msec = 600

fixation_card = nk.cards.ImageCard(
    image=nk.assets.Image.from_path("fixation.png"),
    region=nk.Region(x=0, y=0, w=fixation_size, h=fixation_size),
)

fixation_node = nk.Node(
    sensor=nk.sensors.SelectSensor(choices={"fixation": fixation_card}),
)

stimulus_node = nk.Node(
    card=nk.cards.ImageCard(
        image=nk.assets.Image.from_path("stimulus.png"),
        region=nk.Region(x=0, y=0, w=stimulus_size, h=stimulus_size),
    ),
    sensor=nk.sensors.WaitSensor(duration_msec=stimulus_duration_msec),
    hide_pointer=True,
)

choice_cards = {
    "left": nk.cards.ImageCard(
        image=nk.assets.Image.from_path("choice-correct.png"),
        region=nk.Region(x=-200, y=0, w=choice_size, h=choice_size),
    ),
    "right": nk.cards.ImageCard(
        image=nk.assets.Image.from_path("choice-incorrect.png"),
        region=nk.Region(x=200, y=0, w=choice_size, h=choice_size),
    ),
}

choice_node = nk.Node(
    sensor=nk.sensors.SelectSensor(choices=choice_cards),
)

reward_node = nk.Node(
    card=nk.cards.TextCard(
        text="Correct!",
        font_size=48,
    ),
    sensor=nk.sensors.WaitSensor(duration_msec=feedback_duration_msec),
)

punish_node = nk.Node(
    card=nk.cards.TextCard(
        text="Incorrect.",
        font_size=48,
    ),
    sensor=nk.sensors.WaitSensor(duration_msec=feedback_duration_msec),
)

Notice that we use a SelectSensor for both the fixation and choice Nodes. The clickable Cards live inside the Sensor's choices dict, so the Node's card field can remain empty.

Notice here that, for the first time, we are customizing the location of a Card by setting the region property.

The NodeKit Board coordinate system

In NodeKit, a 1024 x 768 pixel display is used, which is referred to as the Board. Locations on the Board are described using a standardized coordinate system where (0, 0) is the center of the screen, positive x moves right, and positive y moves up.

A Board unit of 1 means 1 CSS pixel.

Choice IDs become Actions

A SelectSensor emits a SelectAction whose action_value is the key you used in the choices dict (here, "left" or "right"). We'll use that in the next section to determine correctness.

Wire Nodes together into the AFC Graph

In the previous step, we wrote several nodes. Now, we'll wire them together into a Graph which describes a single AFC trial. To keep things clearer, only the new code will be shown:

import nodekit as nk
... # old code hidden
afc_graph = nk.Graph(
    start='fixation',
    nodes={
        'fixation': fixation_node,
        'stimulus': stimulus_node,
        'choice': choice_node,
        'reward': reward_node,
        'punish': punish_node,
    },
    transitions={
        'fixation': nk.transitions.Go(to='stimulus'),
        'stimulus': nk.transitions.Go(to='choice'),
        'choice': nk.transitions.IfThenElse(
            if_=nk.expressions.Eq(
                lhs=nk.expressions.LastAction(),
                rhs=nk.expressions.Lit(value='left')
            ),
            then=nk.transitions.Go(to='reward'),
            else_ = nk.transitions.Go(to='punish')
        ),
        'reward': nk.transitions.End(),
        'punish': nk.transitions.End(),
    },
)

The IfThenElse Transition, Expressions, and Values

Notice we used the new IfThenElse Transition. In NodeKit, this is how one creates branches in Graphs.

You can also see that the if_ field requires a wholly new type of NodeKit entity: the Expression. An Expression describes a computation which can be evaluated to a Value.

Here, we wrote an Expression that is roughly equivalent to the following Python code: last_action == 'left', where last_action is the value of the Action in the choice Node. When the Graph is actually run, and this Expression is encountered, it will evaluate to a boolean.

Remember that the correct choice was assigned the ID left, so we have the agent should go to the reward Node if they chose left.

Write a factory function for AFC graphs

In the previous steps, we wrote a single AFC trial. In this tutorial, we want to generate multiple AFC trials which differ by the image stimuli that are used.

While we could certainly copy-and-paste the previous code two times, and edit the existing image stimulus path each time, that would make our code difficult to understand, change, and maintain.

Thus, we should now adapt our existing code by turning it into a little "factory function" which returns an AFC Graph.

from pathlib import Path
import nodekit as nk

def generate_afc_graph(
        fixation_image_path: Path,
        stimulus_image_path: Path,
        correct_image_path: Path,
        incorrect_image_path: Path,
        correct_on_left: bool,
) -> nk.Graph:
    # Code not shown here.
    # Sorry, I'll add it in later!
    # But hopefully you get the idea I'm driving at here.
    # - @himjl
    ...

What to expect when working with NodeKit

At this point in the tutorial, you might fairly conclude that much of working with NodeKit will involve writing factory functions that return Graphs.

This is because NodeKit does not offer a library of ready-to-go tasks or "trial types". Instead, its focus is in providing a set of low-level "building blocks" that the user may compose into tasks.

By way of analogy, the NumPy library does not offer a library of ready-to-go linear classifiers; instead, its focus is on providing low-level building blocks (e.g. matrices + matrix operations) that the user can use.

Step 3: Make a Graph of Graphs

At this point in the tutorial, we've created an "instructions Graph" and three "AFC Graphs". It's now time to assemble our task by "gluing together" these Graphs together into a sequence.

So far, we've seen Graphs made of Nodes. In NodeKit, Graphs can also be made of other Graphs. We will use this fact to 'glue' together these Graphs into a sort-of mega Graph whose nodes are themselves Graphs:

The syntax for doing this is exactly the same as before:

import nodekit as nk

... # definitions of child graphs go here

graph = nk.Graph(
    start='instructions',
    nodes={
        'instructions': instructions_graph,
        'trial1': afc_graph1,
        'trial2': afc_graph2,
        'trial3': afc_graph3,
    },
    transitions={
        'instructions': nk.transitions.Go(to='trial1'),
        'trial1': nk.transitions.Go(to='trial2'),
        'trial2': nk.transitions.Go(to='trial3'),
        'trial3': nk.transitions.End(),
    }
)

Nested Graphs are optional

Writing Graphs using other Graphs is nice, because it allows one to hierarchically organize their task code. This makes one's code easier to write and understand.

But notice this is completely optional: perhaps you can imagine that we could have written this Graph in a totally 'flat' style.

Save time by using nk.concat

Many tasks can be described by linear Graphs, where Nodes (or child Graphs) occur one after the other.

To avoid writing Go boilerplate, we can use the useful nk.concat function.

We could have written the same exact Graph above using the following:

import nodekit as nk

... # definitions of child graphs go here

graph = nk.concat(
    sequence=[instructions_graph, afc_graph1, afc_graph2, afc_graph3],
    ids = ['instructions', 'trial1', 'trial2', 'trial3']
)

Summary

This tutorial introduced several new NodeKit features:

• Graph nesting, where Graph can be composed of other Graphs,
• The standardized Board coordinate system,
• New Card and Sensor types: particularly the ImageCard and the SelectSensor,
• Control flow in Graphs, via the Go and IfThenElse Transitions,
• The use of Expressions to configure the IfThenElse Transition,
• And the nk.concat function, which is a time-saving convenience method for 'gluing' together Graphs (and Nodes) into a linear Graph.

With the above, one can now describe many types of behavioral tasks used in psychological and behavioral research.

What's next?

Up until now, you have been "deploying" Graphs to your local system by using the nk.play function. But NodeKit offers two other deployment schemes:

1. Simulating Graphs in Python (for models)
2. Building deployable static websites for Mechanical Turk or Prolific

These are covered in the next, and final, tutorial.
